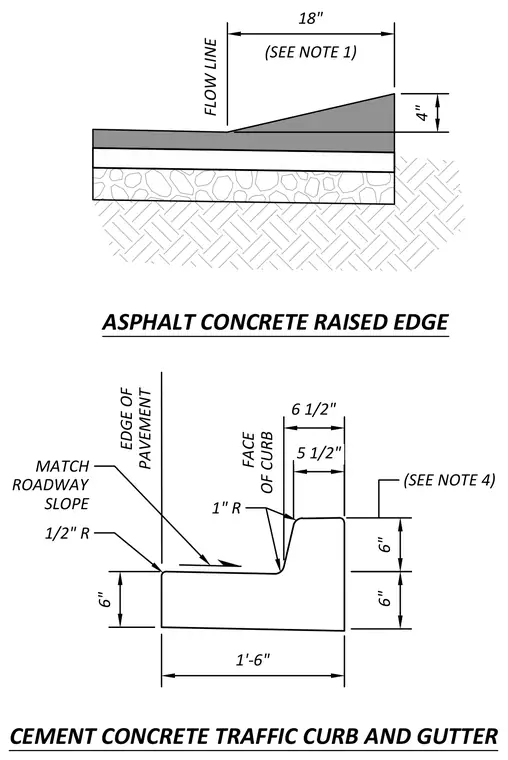

An asphalt concrete raised edge detail sits atop an asphalt concrete layer, base course, and compacted subgrade with an 18-inch width and a 4-inch vertical rise sloping to a flow line. A cement concrete traffic curb and gutter profile features a 1-foot 6-inch total width, a 1-inch radius face of curb, a 1/2-inch radius edge of pavement, and a 6-inch gutter depth matching the roadway slope.
ASPHALT CONCRETE RAISED EDGE CEMENT CONCRETE TRAFFIC CURB AND GUTTER 18" 4" (SEE NOTE 1) FLOW LINE 6 1/2" MATCH ROADWAY SLOPE 1/2" R 6" 6" 1'-6" 6" 5 1/2" EDGE OF PAVEMENT 1" R FACE OF CURB (SEE NOTE 4)
