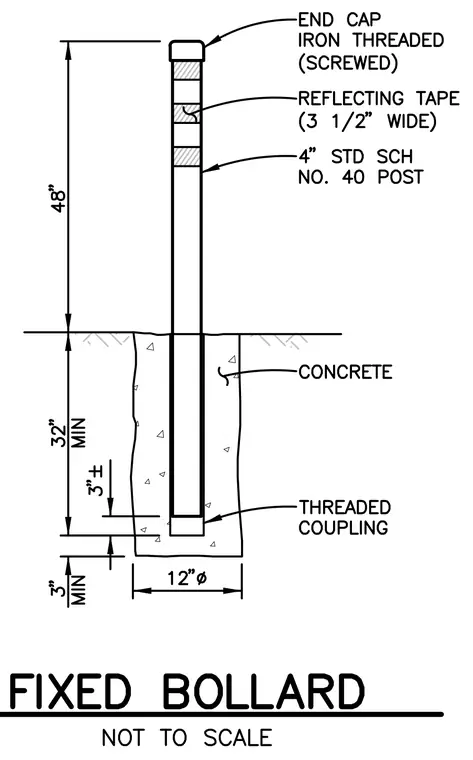

A four-inch standard schedule forty steel post is embedded thirty-two inches minimum into a twelve-inch diameter concrete footing. The post is topped with a threaded iron end cap and features three-and-a-half-inch wide reflective tape near the top. A threaded coupling is positioned near the bottom of the post within the concrete. The assembly extends forty-eight inches above grade.
