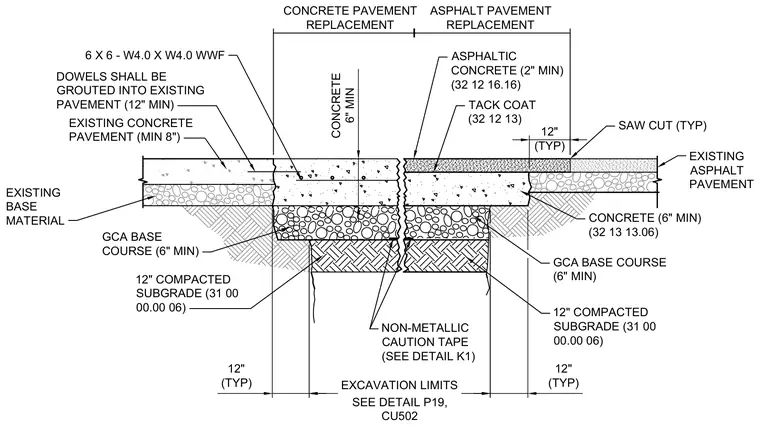

Pavement replacement assemblies for both concrete and asphalt surfaces rest on a minimum six-inch base course and twelve inches of compacted subgrade. Dowels are grouted a minimum of twelve inches into the existing eight-inch concrete pavement, reinforced with 6x6-W4.0xW4.0 welded wire fabric. Asphaltic concrete patches include a two-inch minimum wearing surface over a tack coat and six inches of concrete. Saw cuts establish clean excavation limits, and non-metallic caution tape is buried within the trench profile.
EXISTING CONCRETE PAVEMENT (MIN 8") ASPHALT PAVEMENT REPLACEMENT CONCRETE PAVEMENT REPLACEMENT 12" (TYP) 12" (TYP) 12" (TYP) DOWELS SHALL BE GROUTED INTO EXISTING PAVEMENT (12" MIN) 6 X 6 - W4.0 X W4.0 WWF EXCAVATION LIMITS SEE DETAIL P19, CU502 GCA BASE COURSE (6" MIN) 12" COMPACTED SUBGRADE (31 00 00.00 06) ASPHALTIC CONCRETE (2" MIN) (32 12 16.16) TACK COAT (32 12 13) CONCRETE (6" MIN) (32 13 13.06) 12" COMPACTED SUBGRADE (31 00 00.00 06) SAW CUT (TYP) GCA BASE COURSE (6" MIN) CONCRETE 6" MIN EXISTING ASPHALT PAVEMENT NON-METALLIC CAUTION TAPE (SEE DETAIL K1) EXISTING BASE MATERIAL
