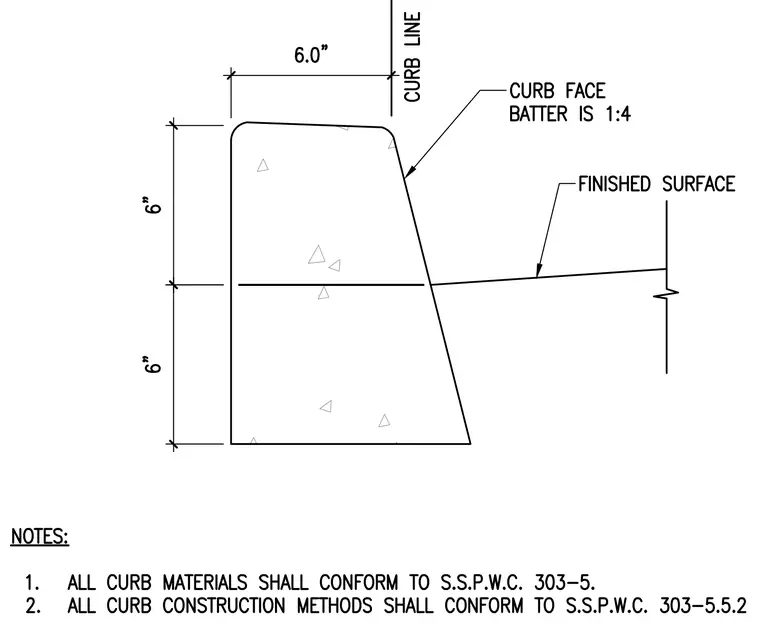

A standard concrete curb with a 6-inch top width and a total height of 12 inches split into two 6-inch vertical increments. The curb face features a batter of 1:4 relative to the curb line. The finished surface intersects the curb face at the midpoint of the 12-inch height. All curb materials conform to S.S.P.W.C. section 303-5 and construction methods conform to S.S.P.W.C. section 303-5.5.2.
