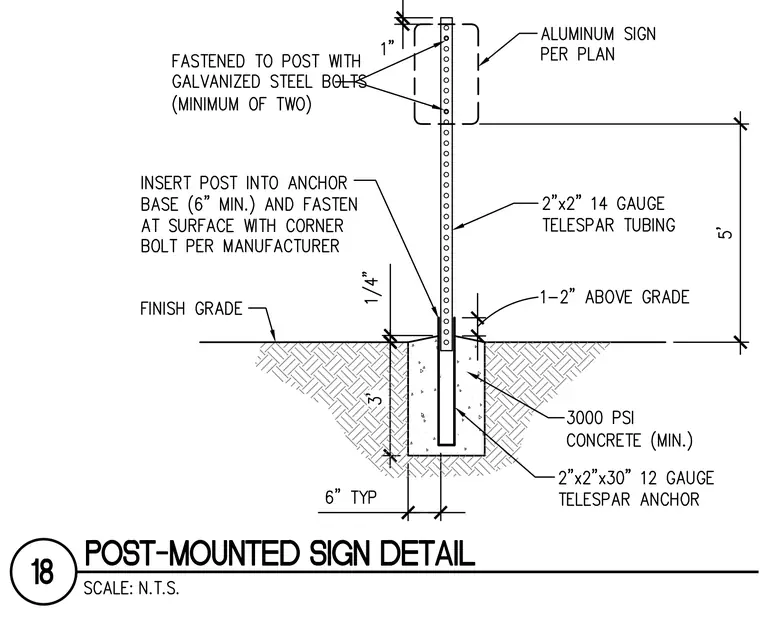

An aluminum sign is fastened to a 2"x2" 14 gauge Telespar tubing post with a minimum of two galvanized steel bolts. The post inserts a minimum of six inches into a 2"x2"x30" 12 gauge Telespar anchor embedded in a minimum 3000 PSI concrete footing. The anchor sleeve extends one to two inches above the finish grade, and the post is fastened at the surface with a corner bolt per the manufacturer's specifications.
