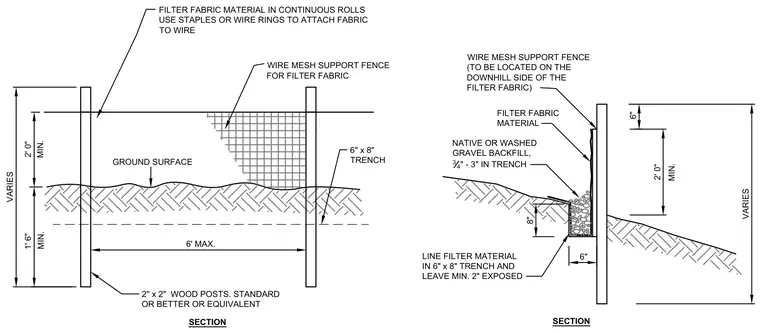

A standard silt fence assembly utilizes two-by-two-inch wood posts spaced at a maximum of six feet on center. Filter fabric material in continuous rolls is attached to a six-inch wire mesh support fence using staples or wire rings. The wire mesh support fence is positioned on the downhill side of the filter fabric. The bottom of the fabric is lined in a six-inch by eight-inch trench, leaving a minimum of two inches exposed, and backfilled with native or washed gravel ranging from three-quarters of an inch to three inches.
2' 0" 1' 6" VARIES GROUND SURFACE FILTER FABRIC MATERIAL IN CONTINUOUS ROLLS USE STAPLES OR WIRE RINGS TO ATTACH FABRIC TO WIRE WIRE MESH SUPPORT FENCE FOR FILTER FABRIC 6' MAX. 2" x 2" WOOD POSTS. STANDARD OR BETTER OR EQUIVALENT 6" x 8" TRENCH 2' 0" VARIES 6" WIRE MESH SUPPORT FENCE (TO BE LOCATED ON THE DOWNHILL SIDE OF THE FILTER FABRIC) FILTER FABRIC MATERIAL NATIVE OR WASHED GRAVEL BACKFILL, 3 4 " - 3" IN TRENCH 8" 6" LINE FILTER MATERIAL IN 6" x 8" TRENCH AND LEAVE MIN. 2" EXPOSED MIN. MIN. MIN. SECTION SECTION
