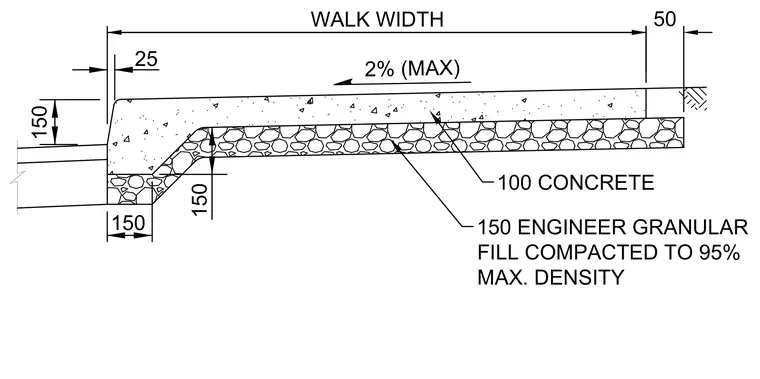

A concrete sidewalk section has a thickness of 100 millimeters and a maximum two percent cross slope for drainage. The walk features an integral curb edge and rests on a 150 millimeter layer of engineered granular fill compacted to 95 percent maximum density. Dimensions specify a 150 millimeter curb thickness and depth alongside a 25 millimeter offset.
25 150 150 2% (MAX) 100 CONCRETE 150 ENGINEER GRANULAR FILL COMPACTED TO 95% MAX. DENSITY WALK WIDTH 150 50
