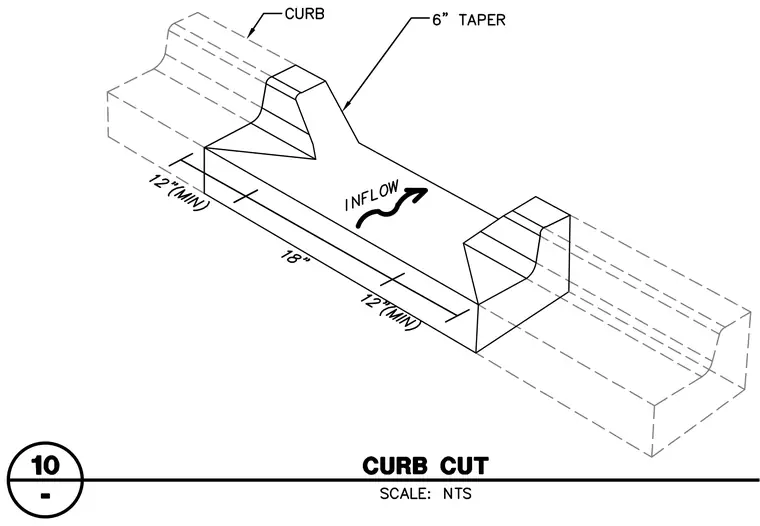

An eighteen inch curb opening features twelve inch minimum tapered transitions on each side to direct inflow. The profile incorporates a six inch taper along the curb face to accommodate drainage requirements. Dashed lines indicate the continuation of the standard curb alignment.
