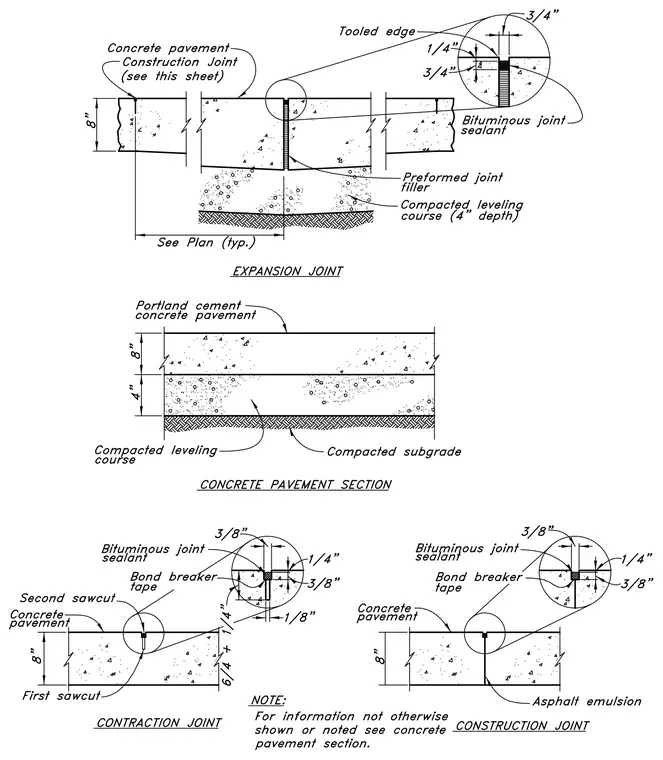

The concrete pavement section consists of an eight-inch portland cement concrete pavement resting on a four-inch compacted leveling course and compacted subgrade. The expansion joint features a preformed joint filler, bituminous joint sealant, a tooled edge, and a four-inch compacted leveling course below the eight-inch concrete pavement. The contraction joint details show first and second sawcuts, a bond breaker tape, and a bituminous joint sealant over an eight-inch concrete pavement thickness. The construction joint includes a bituminous joint sealant, bond breaker tape, and asphalt emulsion between concrete pavement sections. Spacing and joint dimensions include three-quarter-inch joint widths, three-eighths-inch joint widths, and one-quarter-inch sealant depths.
