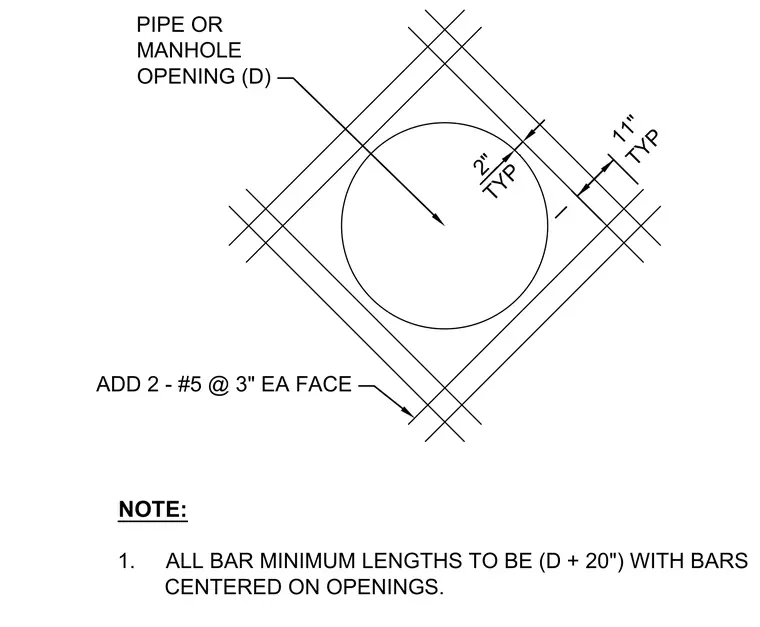

Concrete reinforcement layout around a circular pipe or manhole opening with a diameter D. Two number five reinforcing bars spaced at three inches are added to each face diagonally across the opening. All reinforcing bars have a minimum length equal to the opening diameter plus twenty inches and are centered on the openings.
11" TYP 2" TYP PIPE OR MANHOLE OPENING (D) ADD 2 - #5 @ 3" EA FACE NOTE: 1. ALL BAR MINIMUM LENGTHS TO BE (D + 20") WITH BARS CENTERED ON OPENINGS.
