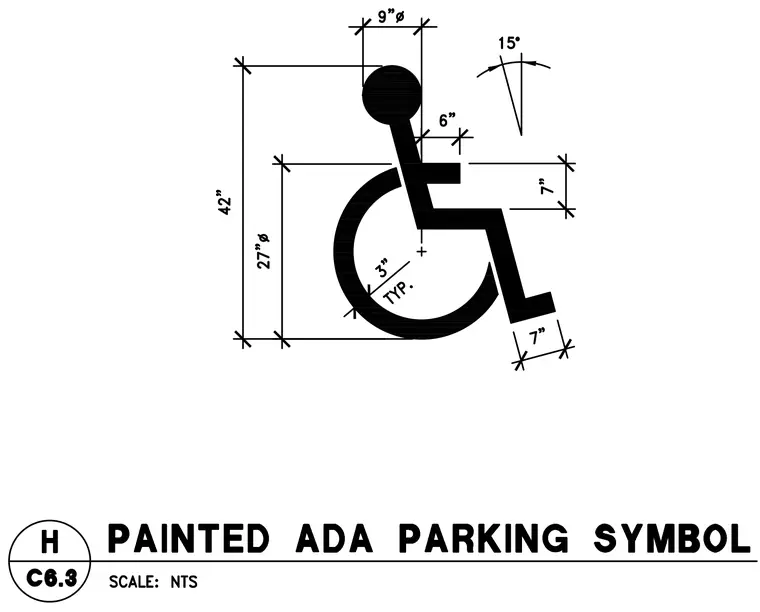

The International Symbol of Accessibility painted on a parking stall pavement is laid out with standard dimensions and proportions. The figure features a 42-inch overall height with a 9-inch diameter head, a 27-inch diameter wheel, and specific dimensional clearances for the arm, backrest, and leg portions. The symbol layout incorporates a 15-degree backrest angle and typical 3-inch stroke dimensions.
