Gusset Plate Layout Procedure for Braced Frame Connections

Materials

weld

Elements

Columns Beams Bracing Connections / Plates

Connections

Gusset Plate Bracing Connection Welded Connection Bolted Connection

About this detail

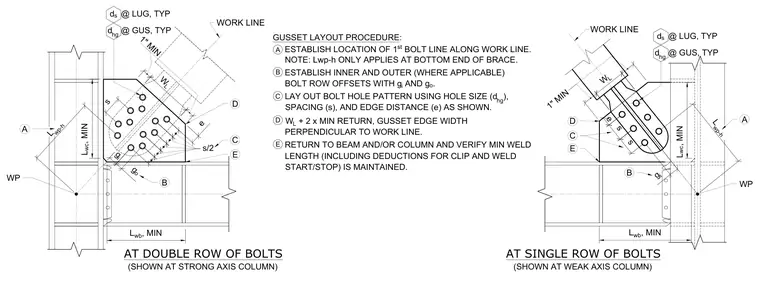

This diagram details the layout procedure for structural steel gusset plates at braced frame connections to columns and beams. The procedure establishes the work point, bolt line locations, inner and outer bolt row offsets, and edge distances along the work line. Weld lengths and minimum return dimensions are verified against beam and column interfaces for both strong axis and weak axis column orientations.
