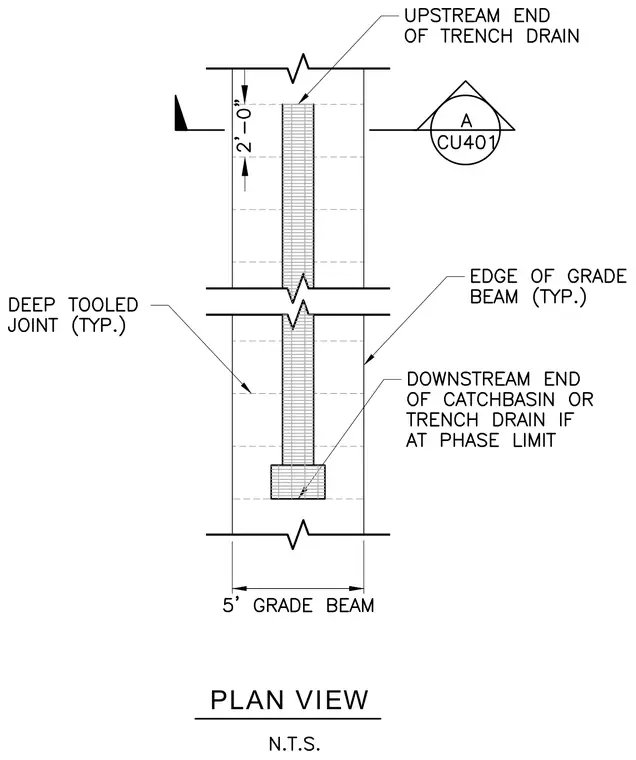

A trench drain is centered within a 5-foot grade beam with the upstream end located 2 feet from a designated mark. Deep tooled joints run transversely across the concrete grade beam at typical intervals. The downstream end terminates at a catch basin or another trench drain depending on the phase limit. An elevation callout links to sheet CU401 for further reference.
