This concrete masonry unit wall detail defines the minimum clear spacing requirements for reinforcing bars. Vertical reinforcement requires a minimum clear spacing of one and a half inches or one point five times the bar diameter, whichever is larger, with a minimum of two inches below grade. Horizontal reinforcement requires a minimum clear spacing of one inch or one bar diameter, whichever is larger. Variable 'd' represents the diameter of the larger bar.

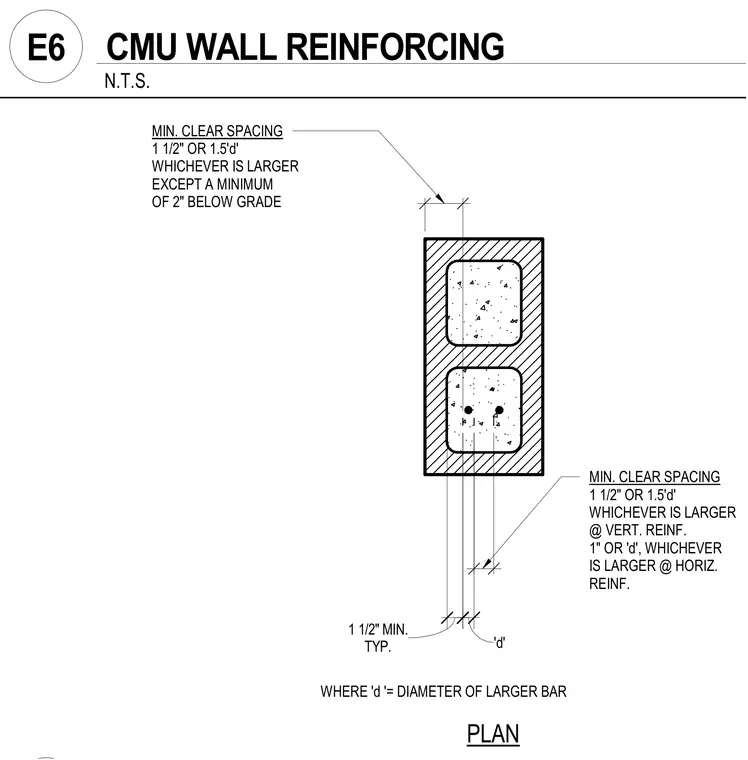

WHERE 'd '= DIAMETER OF LARGER BAR PLAN MIN. CLEAR SPACING 1 1/2" OR 1.5'd' WHICHEVER IS LARGER @ VERT. REINF. 1" OR 'd', WHICHEVER IS LARGER @ HORIZ. REINF. MIN. CLEAR SPACING 1 1/2" OR 1.5'd' WHICHEVER IS LARGER EXCEPT A MINIMUM OF 2" BELOW GRADE 1 43/128" TYP. 1 1/2" MIN. 'd' 2 73/128" N.T.S. E6 CMU WALL REINFORCING
