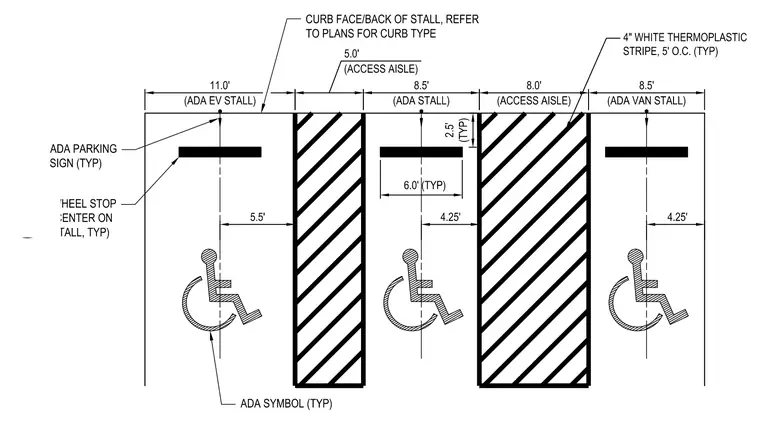

Accessible parking stall dimensions and markings include an electric vehicle stall, a standard ADA stall, and a van-accessible stall. Each stall features a centered wheel stop and an ADA symbol. Access aisles between stalls consist of four-inch wide white thermoplastic striping spaced at five feet on center. Stalls are oriented to a curb face, with stall widths ranging from 8.5 feet to 11 feet and access aisles measuring 5 feet and 8 feet wide respectively.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and open any detail in the built-in CAD editor to edit and export DXF or DWG.
