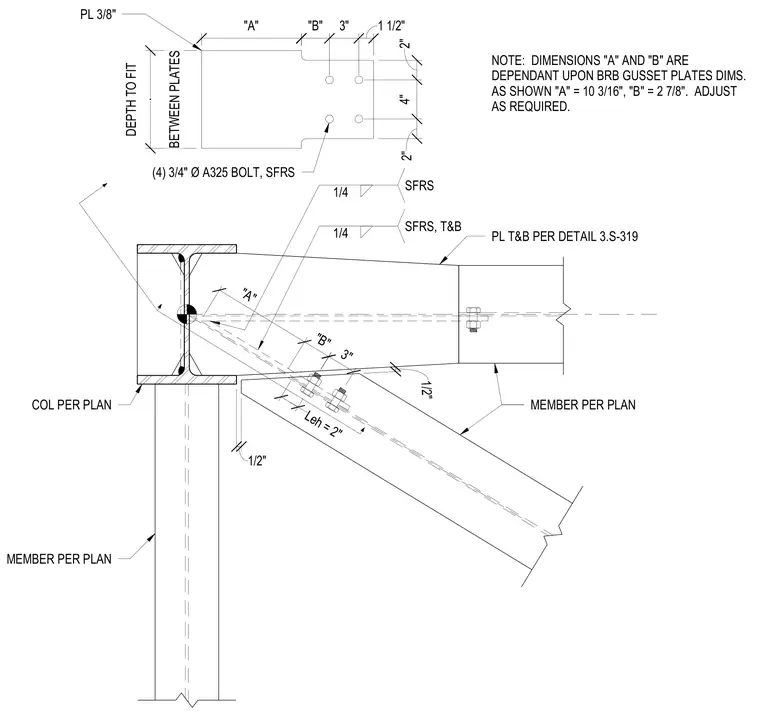

A horizontal brace connects to a steel column via gusset plates welded with quarter-inch fillet welds. Four three-quarter-inch diameter A325 bolts fasten the gusset plate assembly. Top and bottom plates are sized per detail 3.S-319, with three-eighth-inch plates fitted between them. Dimensions A and B vary depending on the buckling-restrained brace gusset plate dimensions, with shown values of ten and three-sixteenths inches and two and seven-eighths inches respectively.
PL T&B PER DETAIL 3.S-319 PL 3/8" 1/4 SFRS BETWEEN PLATES DEPTH TO FIT . "A" 2" 4" 2" "B" 3" 1 1/2" (4) 3/4" Ø A325 BOLT, SFRS MEMBER PER PLAN COL PER PLAN MEMBER PER PLAN 3" 1/2" Leh = 2" 1/4 SFRS, T&B 1/2" "B" "A" NOTE: DIMENSIONS "A" AND "B" ARE DEPENDANT UPON BRB GUSSET PLATES DIMS. AS SHOWN "A" = 10 3/16", "B" = 2 7/8". ADJUST AS REQUIRED.
