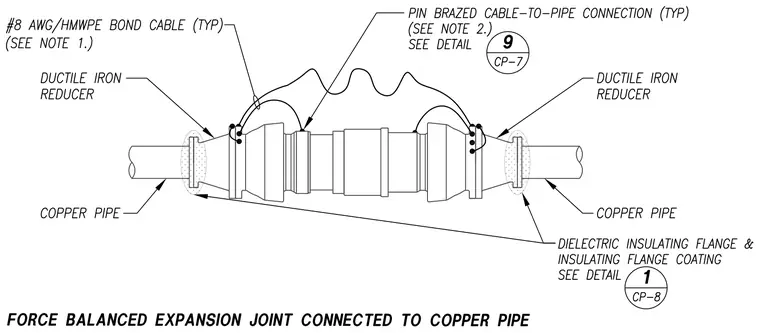

A force balanced expansion joint connects between copper pipes using ductile iron reducers at each transition. Dielectric insulating flanges with insulating flange coatings separate dissimilar metals at the pipe joints. Pin brazed cable-to-pipe connections attach an eight American Wire Gauge high molecular weight polyethylene bond cable across the assembly typically.
