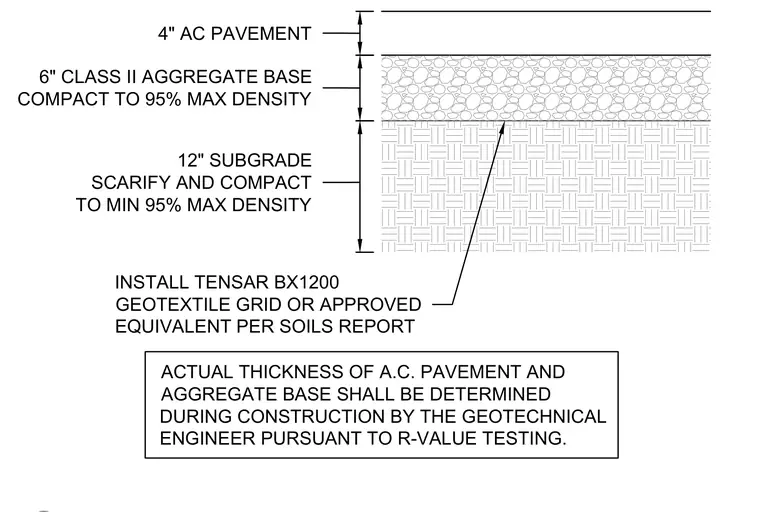

The pavement assembly consists of four inches of asphalt concrete pavement overlying six inches of Class II aggregate base compacted to ninety-five percent maximum density. Below the base course, a Tensar BX1200 geotextile grid or approved equivalent is installed over a twelve-inch subgrade that is scarified and compacted to a minimum of ninety-five percent maximum density. The actual thickness of the asphalt concrete pavement and aggregate base is determined during construction by the geotechnical engineer pursuant to R-value testing.
ACTUAL THICKNESS OF A.C. PAVEMENT AND AGGREGATE BASE SHALL BE DETERMINED DURING CONSTRUCTION BY THE GEOTECHNICAL ENGINEER PURSUANT TO R-VALUE TESTING. 4" AC PAVEMENT 6" CLASS II AGGREGATE BASE COMPACT TO 95% MAX DENSITY 12" SUBGRADE SCARIFY AND COMPACT TO MIN 95% MAX DENSITY INSTALL TENSAR BX1200 GEOTEXTILE GRID OR APPROVED EQUIVALENT PER SOILS REPORT
