Protective bollards are positioned to shield the fire hydrant or post indicator valve on the side exposed to vehicle traffic. A minimum of two bollards must be installed, maintained at least 610 millimeters from the edge of the hydrant or valve. A separation of 1000 millimeters is maintained between bollards.

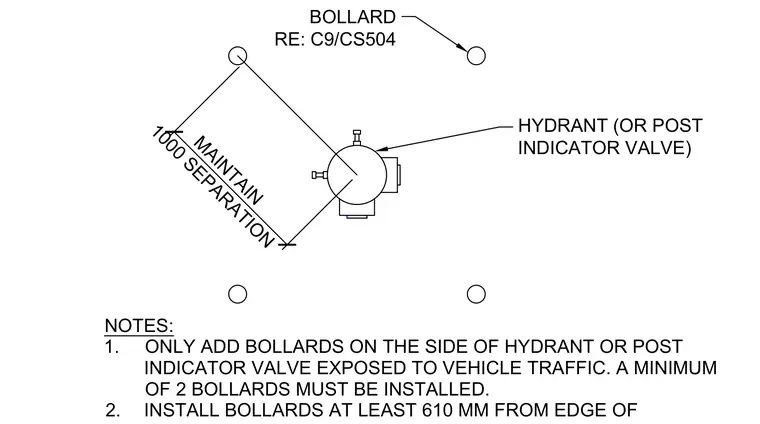

NOTES: 1. ONLY ADD BOLLARDS ON THE SIDE OF HYDRANT OR POST INDICATOR VALVE EXPOSED TO VEHICLE TRAFFIC. A MINIMUM OF 2 BOLLARDS MUST BE INSTALLED. 2. INSTALL BOLLARDS AT LEAST 610 MM FROM EDGE OF HYDRANT (OR POST INDICATOR VALVE) BOLLARD RE: C9/CS504 MAINTAIN 1000 SEPARATION
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
