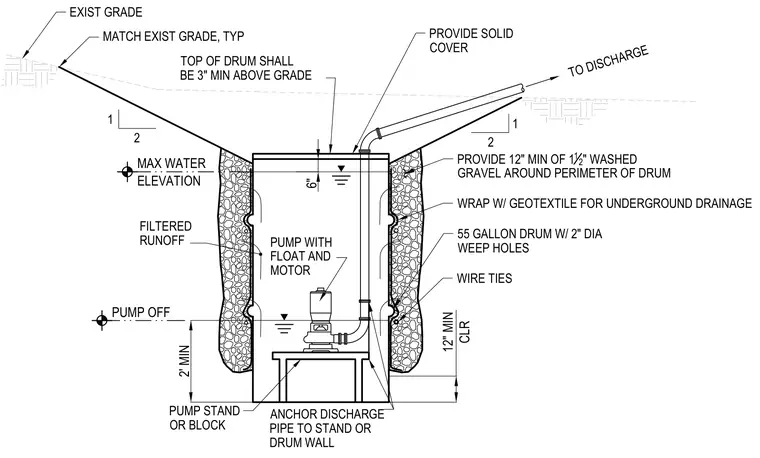

A sediment catchment area utilizes a fifty-five gallon drum with two-inch diameter weep holes wrapped in geotextile fabric for underground drainage. A minimum twelve-inch perimeter of one-and-a-half-inch washed gravel surrounds the drum, which is set into graded earth matching the existing grade. The top of the drum sits three inches minimum above grade and features a solid cover. Inside, a pump with a float and motor sits on a pump stand or block, with the discharge pipe anchored to the stand or drum wall.
MATCH EXIST GRADE, TYP FILTERED RUNOFF 6" WIRE TIES 55 GALLON DRUM W/ 2" DIA WEEP HOLES WRAP W/ GEOTEXTILE FOR UNDERGROUND DRAINAGE PROVIDE 12" MIN OF 1 12 " WASHED GRAVEL AROUND PERIMETER OF DRUM PROVIDE SOLID COVER TOP OF DRUM SHALL BE 3" MIN ABOVE GRADE 12" MIN CLR EXIST GRADE 2 2 1 1 2' MIN TO DISCHARGE ANCHOR DISCHARGE PIPE TO STAND OR DRUM WALL PUMP STAND OR BLOCK PUMP WITH FLOAT AND MOTOR MAX WATER ELEVATION PUMP OFF
