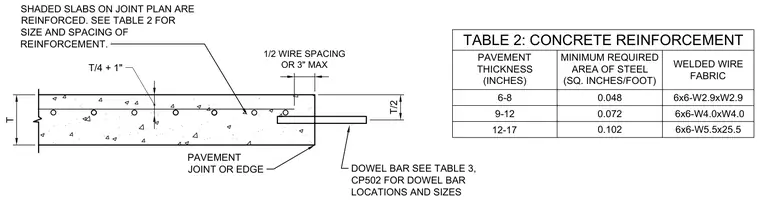

Concrete pavement slabs feature welded wire fabric reinforcement placed at a depth of T/4 plus one inch from the top surface with wire spacing of one-half inch or three inches maximum. Dowel bars project from the pavement joint or edge with sizes and locations determined by table 3. The accompanying table provides the minimum required area of steel in square inches per foot and corresponding welded wire fabric designations for pavement thicknesses ranging from six to seventeen inches.
1/2 WIRE SPACING OR 3" MAX TABLE 2: CONCRETE REINFORCEMENT PAVEMENT THICKNESS (INCHES) MINIMUM REQUIRED AREA OF STEEL (SQ. INCHES/FOOT) WELDED WIRE FABRIC 6-8 0.048 6x6-W2.9xW2.9 9-12 0.072 6x6-W4.0xW4.0 12-17 0.102 6x6-W5.5x25.5 T/2 T PAVEMENT JOINT OR EDGE SHADED SLABS ON JOINT PLAN ARE REINFORCED. SEE TABLE 2 FOR SIZE AND SPACING OF REINFORCEMENT. T/4 + 1" DOWEL BAR SEE TABLE 3, CP502 FOR DOWEL BAR LOCATIONS AND SIZES
