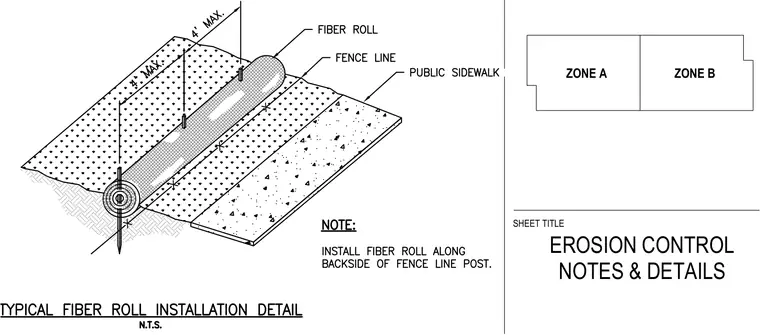

A fiber roll is installed along the backside of a fence line post, adjacent to a public sidewalk. Staking and placement dimensions indicate a maximum spacing of four feet.
