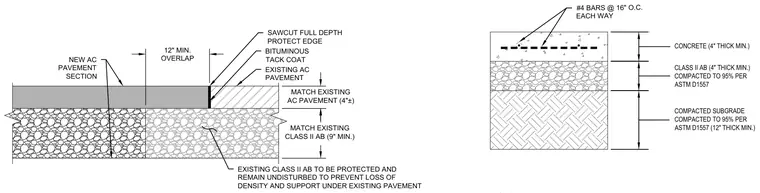

The new asphalt concrete pavement section meets existing asphalt with a full-depth sawcut and protected edge, set over a minimum twelve-inch overlap onto undisturbed base. A bituminous tack coat seals the vertical joint between the new and existing asphalt surfaces. The underlying structural section consists of a four-inch minimum concrete or aggregate layer over Class II aggregate base compacted to ninety-five percent per ASTM D1557. Existing Class II aggregate base remains undisturbed to prevent loss of density and support under the existing pavement. Additional reinforcement includes number four bars at sixteen inches on center each way within the concrete section.
CONCRETE (4" THICK MIN.) CLASS II AB (4" THICK MIN.) COMPACTED TO 95% PER ASTM D1557 COMPACTED SUBGRADE COMPACTED TO 95% PER ASTM D1557 (12" THICK MIN.) #4 BARS @ 16" O.C. EACH WAY MATCH EXISTING AC PAVEMENT (4"±) MATCH EXISTING CLASS II AB (9" MIN.) 12" MIN. OVERLAP SAWCUT FULL DEPTH PROTECT EDGE BITUMINOUS TACK COAT EXISTING AC PAVEMENT EXISTING CLASS II AB TO BE PROTECTED AND REMAIN UNDISTURBED TO PREVENT LOSS OF DENSITY AND SUPPORT UNDER EXISTING PAVEMENT NEW AC PAVEMENT SECTION
