Reinforced Concrete Cheekwall Detail with Expansion Joint

Materials

Concrete Reinforced Concrete

Elements

Columns Expansion / Control Joints Anchors / Embeds Reinforcing

Connections

Rebar Splice / Development Expansion / Slip Connection

About this detail

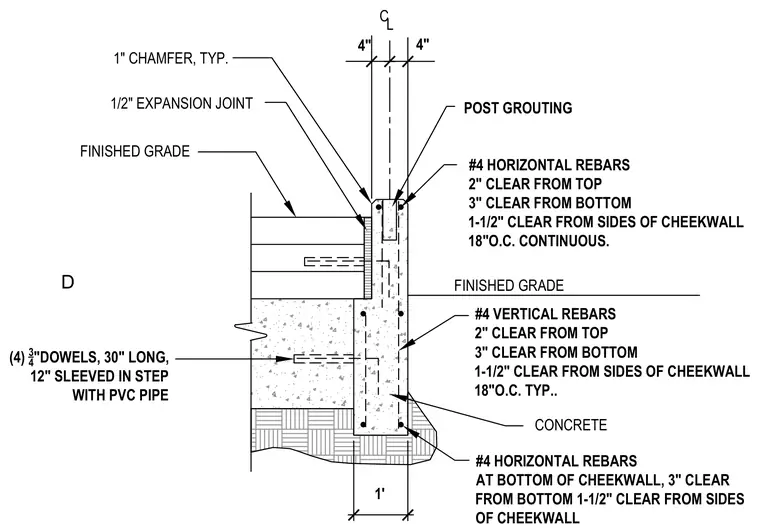

A reinforced concrete cheekwall ties into an adjacent concrete step with four three-quarters-inch dowels, thirty inches long and twelve inches sleeved in PVC pipe. The cheekwall features continuous number four horizontal rebars placed at eighteen inches on center, maintaining two inches of clearance from the top, three inches from the bottom, and one and one-half inches from the sides. Number four vertical rebars are spaced at eighteen inches on center with matching clearances. A one-half-inch expansion joint is positioned between the cheekwall and the adjacent finished grade. The top edge includes a one-inch typical chamfer and post grouting.
