C-W5MJW — Typical Horizontal Construction Joint In Masonry Wall Detail

Civil · C-W5MJW

Typical Horizontal Construction Joint In Masonry Wall Detail

Units: imperial
Sheet: C12
Discipline: Civil

Materials

Concrete Masonry / CMU

Elements

Expansion / Control Joints Reinforcing Walls

Text on the drawing

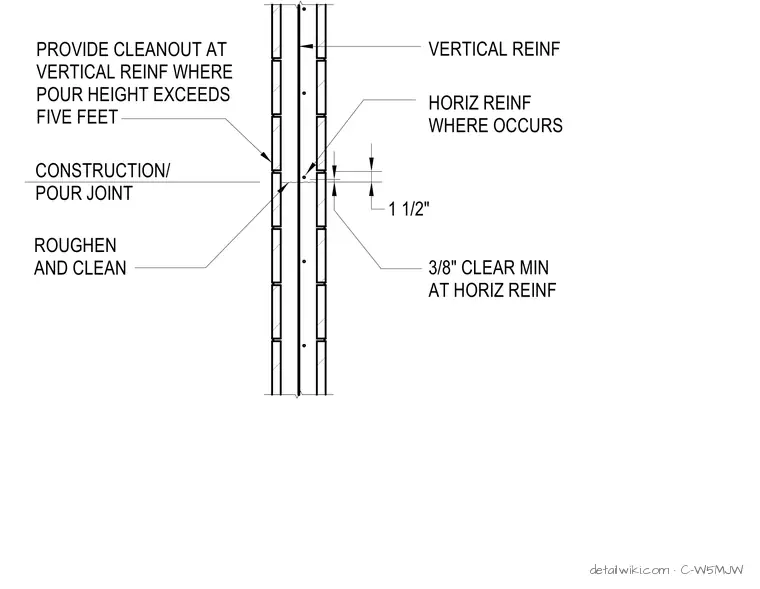

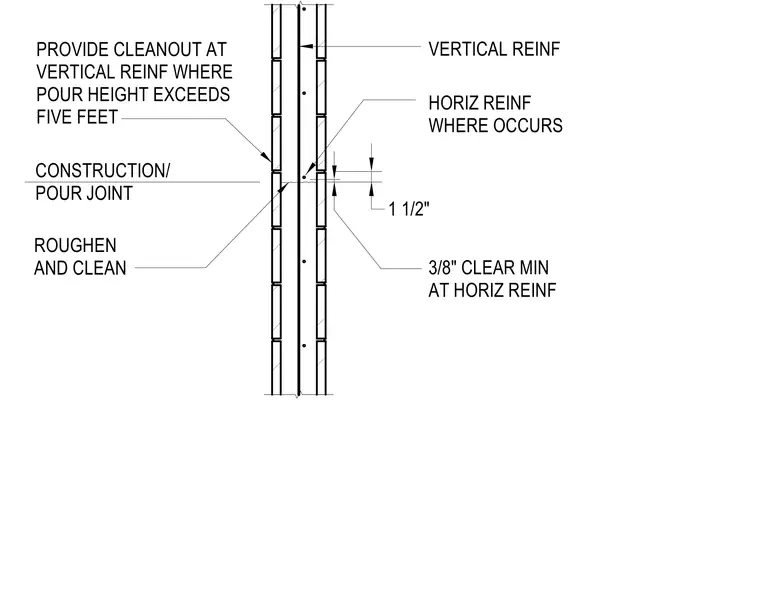

1 1/2" CONSTRUCTION/ POUR JOINT PROVIDE CLEANOUT AT VERTICAL REINF WHERE POUR HEIGHT EXCEEDS FIVE FEET ROUGHEN AND CLEAN 3/8" CLEAR MIN AT HORIZ REINF HORIZ REINF WHERE OCCURS VERTICAL REINF
