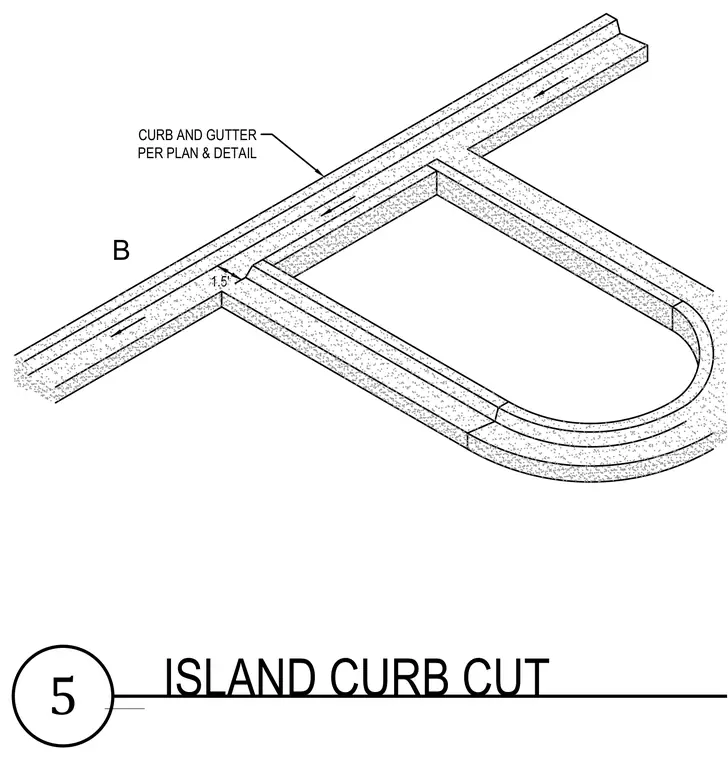

An island curb cut layout featuring curb and gutter per plan with a one-point-five-foot opening dimension. The configuration establishes a drainage break along the paved island perimeter. Curb and gutter profiles conform to standard civil details.
