The pavement assembly consists of a four-inch hot mix asphalt surface placed in two passes over a bituminous tack coat. A bituminous prime coat is applied above a six-inch graded crushed aggregate base course. The base course rests directly on a twelve-inch compacted subgrade, where existing material is removed and constructed per specification section 31 00 00.00 06.

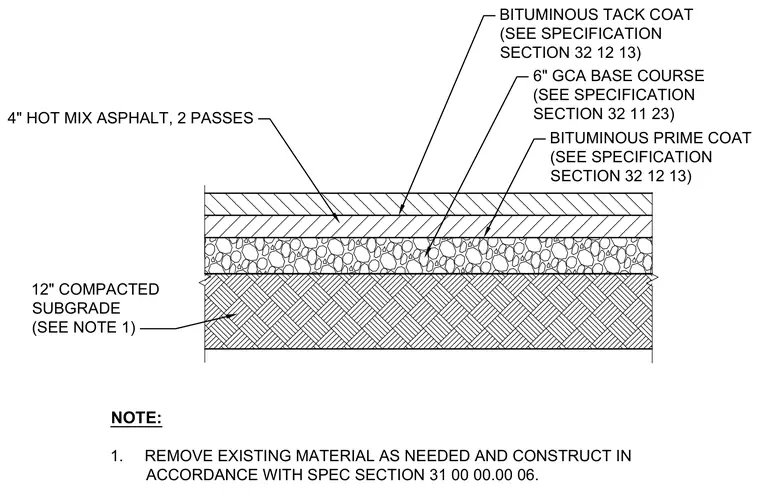

4" HOT MIX ASPHALT, 2 PASSES BITUMINOUS PRIME COAT (SEE SPECIFICATION SECTION 32 12 13) 6" GCA BASE COURSE (SEE SPECIFICATION SECTION 32 11 23) 12" COMPACTED SUBGRADE (SEE NOTE 1) NOTE: 1. REMOVE EXISTING MATERIAL AS NEEDED AND CONSTRUCT IN ACCORDANCE WITH SPEC SECTION 31 00 00.00 06. BITUMINOUS TACK COAT (SEE SPECIFICATION SECTION 32 12 13)
