A stainless steel bottom filler by Gaylord is installed at the back of a canopy and secured using field tack welds. An optional installation method utilizes stainless steel hardware provided by others.

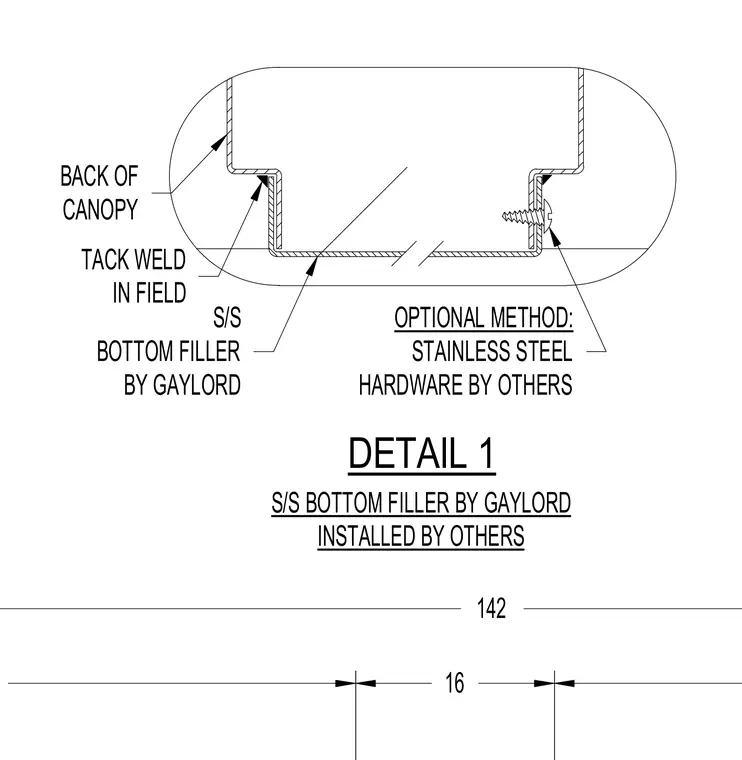

142 16 DETAIL 1 S/S BOTTOM FILLER BY GAYLORD INSTALLED BY OTHERS BACK OF CANOPY TACK WELD IN FIELD S/S BOTTOM FILLER BY GAYLORD OPTIONAL METHOD: STAINLESS STEEL HARDWARE BY OTHERS
