Civil · C-VT59R

Drainage Swale

Materials

About this detail

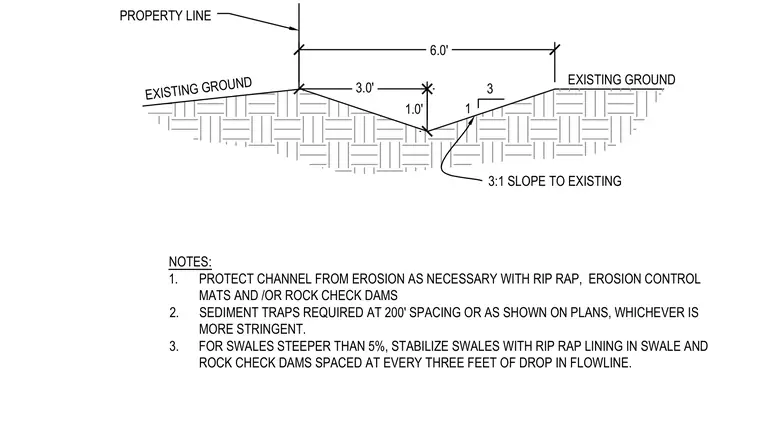

A trapezoidal drainage swale is cut into existing ground with a three-to-one side slope and a one-foot depth over a three-foot bottom width, maintaining a total six-foot width from the property line. Erosion control measures include rip rap, erosion control mats, rock check dams, and sediment traps spaced at two hundred feet. Swales steeper than five percent require a rip rap lining and rock check dams spaced at every three feet of drop in flowline.
