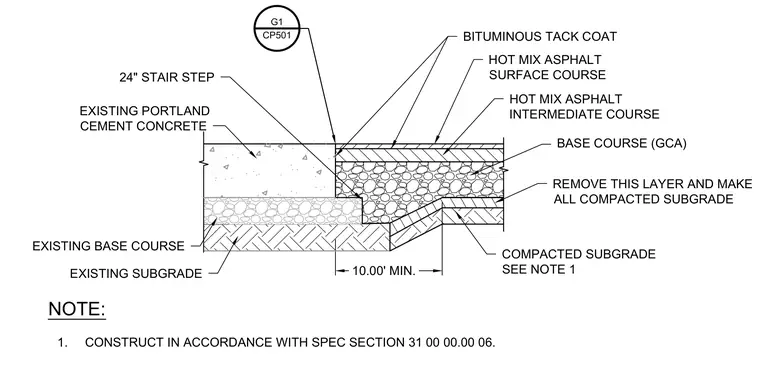

A transition junction connects new hot mix asphalt surfacing to existing portland cement concrete. The assembly consists of a hot mix asphalt surface course and intermediate course placed over a base course and a compacted subgrade. A bituminous tack coat is applied between the pavement lifts. The connection detail features a stepped interface with a minimum 10.00 foot horizontal transition zone and a twenty-four inch stair step against the existing concrete. Portions of the existing base are removed to establish continuous compacted subgrade in accordance with specification section 31 00 00.00 06.
10.00' MIN. HOT MIX ASPHALT SURFACE COURSE EXISTING PORTLAND CEMENT CONCRETE BITUMINOUS TACK COAT COMPACTED SUBGRADE SEE NOTE 1 EXISTING SUBGRADE HOT MIX ASPHALT INTERMEDIATE COURSE EXISTING BASE COURSE BASE COURSE (GCA) 24" STAIR STEP CP501 G1 NOTE: 1. CONSTRUCT IN ACCORDANCE WITH SPEC SECTION 31 00 00.00 06. REMOVE THIS LAYER AND MAKE ALL COMPACTED SUBGRADE
