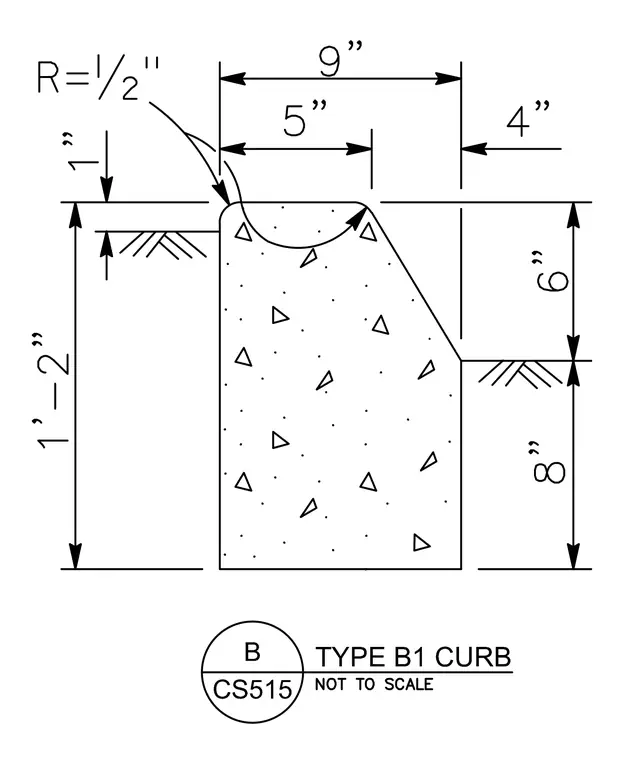

A Type B1 concrete curb profile and dimensions feature a total height of one foot two inches, a top width of nine inches spanning five inches to a half-inch radius edge and four inches to a sloping back face, with the front face dropping six inches from the top to the road grade line, followed by eight inches of buried depth to the bottom of the section.
