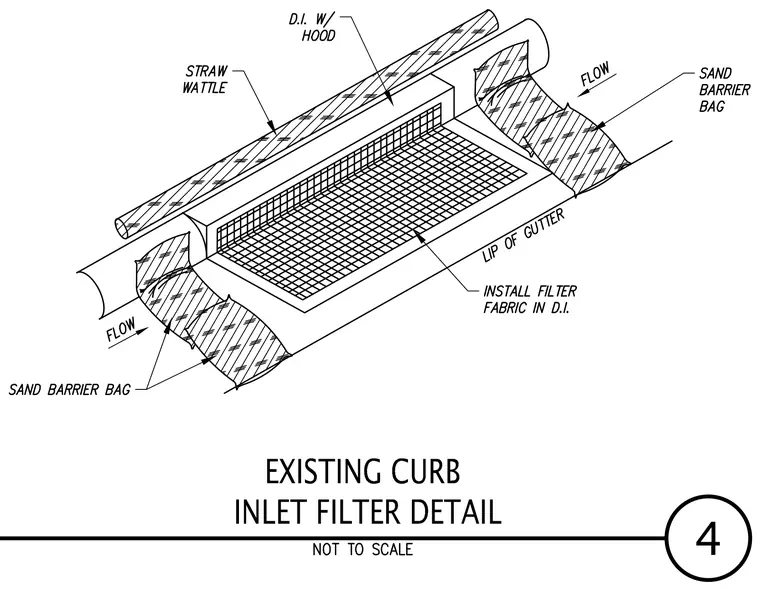

An existing drop inlet with a hood receives a filter fabric installed internally across the opening. Sand barrier bags flank the inlet along the direction of flow to capture sediment. A straw wattle runs parallel behind the inlet for additional runoff filtration along the lip of the gutter.
