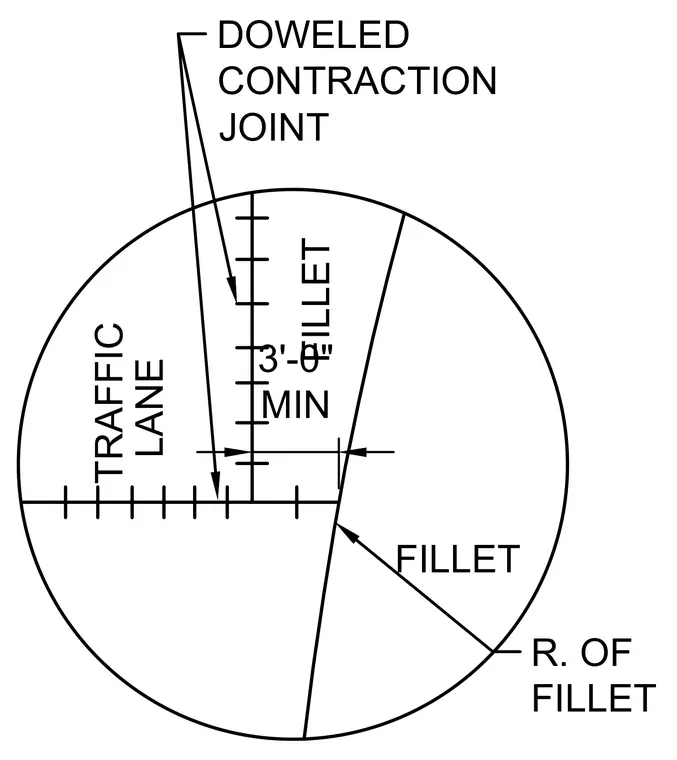

A doweled contraction joint is positioned between traffic lanes with a three-foot minimum dimension. The layout incorporates fillet transitions and radius of fillet specifications. Transverse markings indicate joint placement across the pavement surface.
TRAFFIC FILLET LANE FILLET R. OF FILLET DOWELED CONTRACTION JOINT 3'-0" MIN
