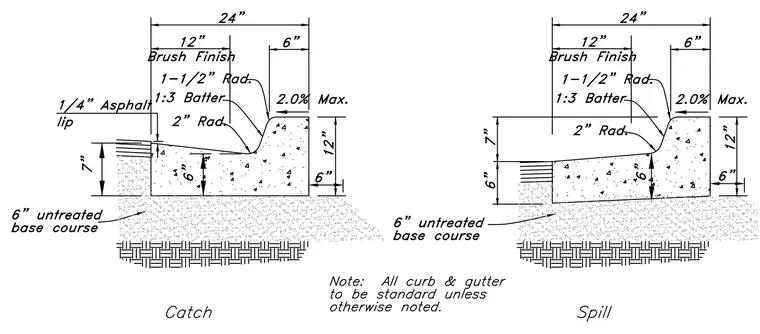

Two concrete curb and gutter profiles are shown, designated as catch and spill configurations, supported on a six-inch untreated base course. The overall width of the concrete section is twenty-four inches with a twelve-inch gutter pan featuring a brush finish. The curb height is twelve inches with a six-inch base depth, a two-inch radius transition, a one-to-three batter, and a one-and-one-half-inch radius top corner. A maximum slope of two percent is indicated on the top surface. The catch profile includes a one-quarter-inch asphalt lip adjacent to a seven-inch drop, while the spill profile transitions directly to a seven-inch pavement edge.
