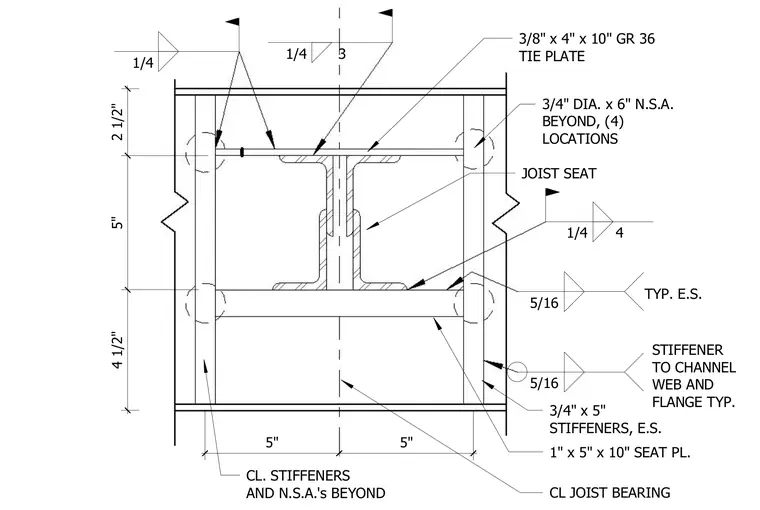

A joist seat bears upon a 1-inch by 5-inch by 10-inch seat plate welded with five-sixteenth-inch fillet welds typical each side. A 3/8-inch by 4-inch by 10-inch Grade 36 tie plate ties the top of the assembly together using quarter-inch fillet welds. Vertical 3/4-inch by 5-inch stiffeners are placed each side and welded to the channel web and flange with five-sixteenth-inch fillet welds. Four 3/4-inch diameter by 6-inch non-slip anchor assemblies are positioned beyond the joist seat.
STIFFENER TO CHANNEL WEB AND FLANGE TYP. 3/8" x 4" x 10" GR 36 TIE PLATE 3/4" x 5" STIFFENERS, E.S. 1" x 5" x 10" SEAT PL. CL JOIST BEARING CL. STIFFENERS AND N.S.A.'s BEYOND JOIST SEAT 3/4" DIA. x 6" N.S.A. BEYOND, (4) LOCATIONS 1/4 3 1/4 4 5/16 TYP. E.S. 5/16 5" 5" 4 1/2" 5" 2 1/2" 1/4
