Architectural · C-VCN9F

Fullerton Union High School

Materials

Concrete Metal (misc.)

Elements

Floors / Slabs Arches Waterproofing / Flashing Site / Paving Anchors / Embeds Roof / Floor Openings

Connections

Embed Plate

About this detail

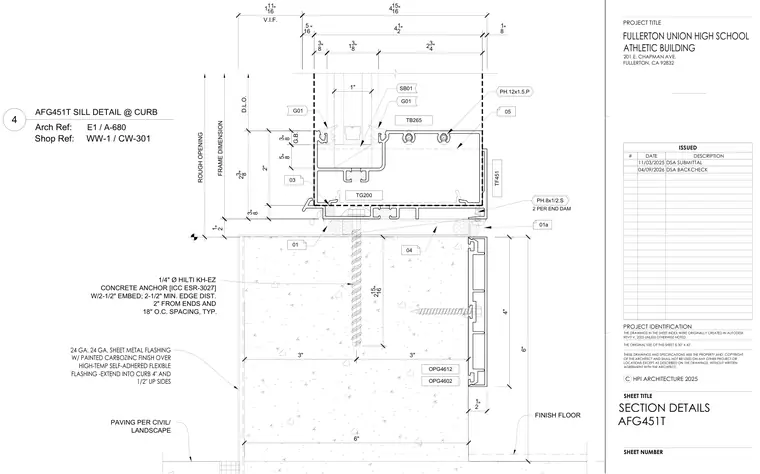

An extruded aluminum storefront sill member mounts directly to a concrete curb utilizing quarter-inch diameter Hilti KH-EZ concrete anchors with two-and-a-half-inch embedment spaced eighteen inches on center. Twenty-four gauge sheet metal flashing with a painted Carbozinc finish is installed over a high-temperature self-adhered flexible flashing, extending four inches into the curb and one-half inch up the sides. The sill framing incorporates custom gasket profiles, thermal breaks, and fastener locations securing the frame dimension and rough opening interface.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
