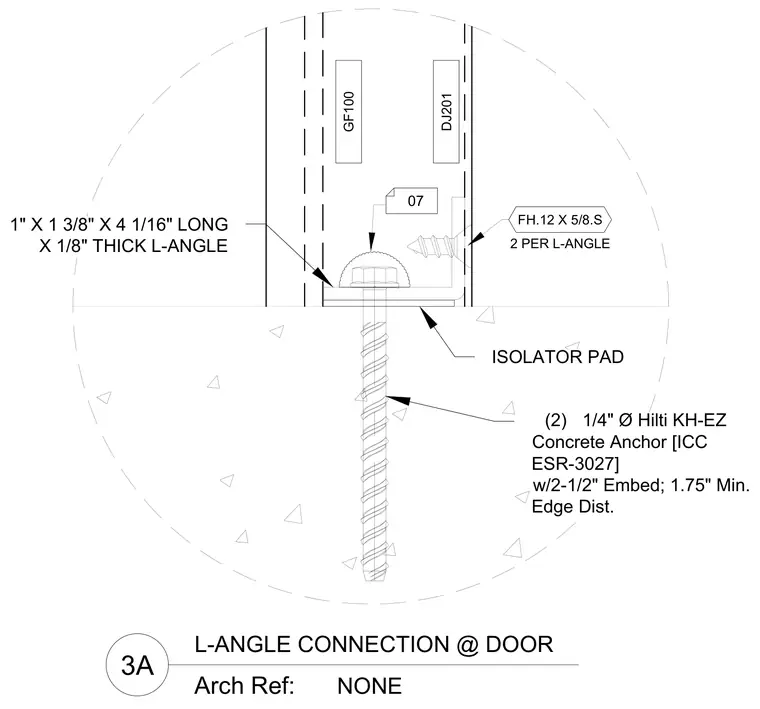

An L-angle measuring 1 inch by 1-3/8 inches by 4-1/16 inches long and 1/8 inch thick is secured to a concrete substrate using two 1/4-inch diameter Hilti KH-EZ concrete anchors with 2-1/2 inch embedment and a 1.75-inch minimum edge distance. An isolator pad sits between the L-angle and the concrete surface. The door frame component is fastened to the L-angle using two screws per angle.
FH.12 X 5/8.S DJ201 GF100 07 2 PER L-ANGLE Arch Ref: 3A L-ANGLE CONNECTION @ DOOR NONE 1" X 1 3/8" X 4 1/16" LONG X 1/8" THICK L-ANGLE ISOLATOR PAD (2) 1/4" Ø Hilti KH-EZ Concrete Anchor [ICC ESR-3027] w/2-1/2" Embed; 1.75" Min. Edge Dist.
