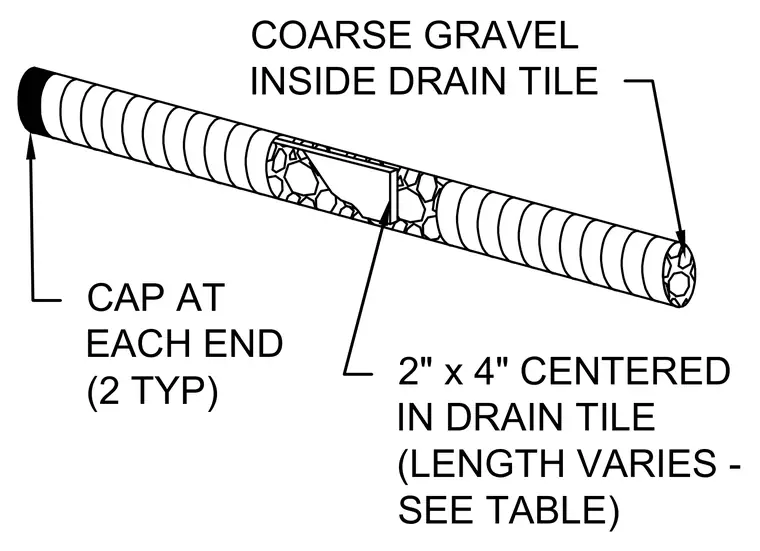

An interior drain tile assembly is fitted with an end cap at each end typically. The pipe is filled with coarse gravel and contains a centered two by four with a variable length per table specifications.
CAP AT EACH END (2 TYP) COARSE GRAVEL INSIDE DRAIN TILE 2" x 4" CENTERED IN DRAIN TILE (LENGTH VARIES - SEE TABLE)
