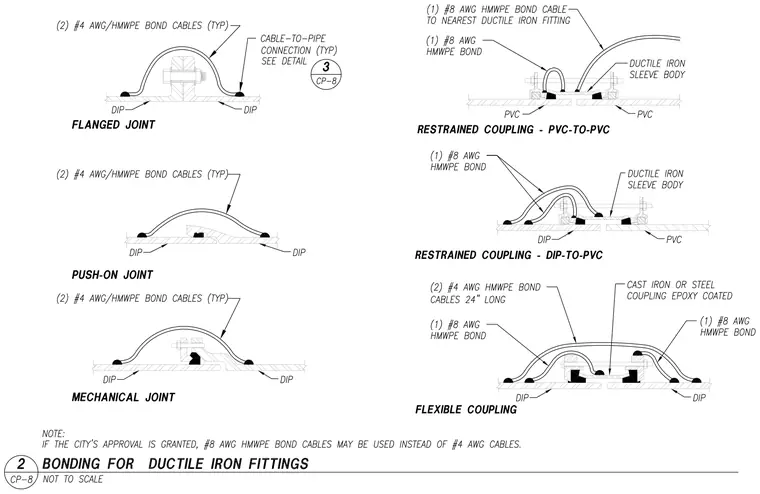

These details show electrical bonding jumper connections across various pipe joints for corrosion control and cathodic protection systems. The assembly utilizes two number four American Wire Gauge high molecular weight polyethylene bond cables on flanged, push-on, and mechanical joints, and number eight American Wire Gauge high molecular weight polyethylene bond cables on restrained and flexible couplings. Cables connect to ductile iron pipe, polyvinyl chloride pipe, or sleeve bodies using thermite-welded or mechanical cable-to-pipe connections. A general note permits number eight American Wire Gauge bond cables in lieu of number four cables if city approval is granted.
