Civil · C-V386T

Asphalt Concrete Pavement Section at Curb and Gutter

Materials

Elements

About this detail

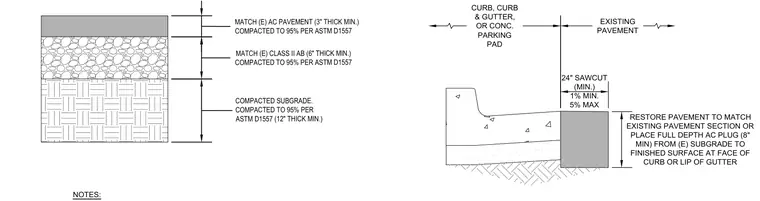

An asphalt concrete pavement section consists of a minimum three-inch thick asphalt concrete layer matching existing conditions, placed over a minimum six-inch thick Class II aggregate base compacted to ninety-five percent per ASTM D1557. The underlying subgrade is compacted to ninety-five percent per ASTM D1557 with a minimum thickness of twelve inches. Adjacent to the existing curb, curb and gutter, or concrete parking pad, a minimum twenty-four-inch sawcut is required with a slope ranging from one percent minimum to five percent maximum. The pavement is restored to match the existing section or filled with a minimum eight-inch deep full-depth asphalt concrete plug from the existing subgrade to the finished surface at the face of the curb or lip of the gutter.
