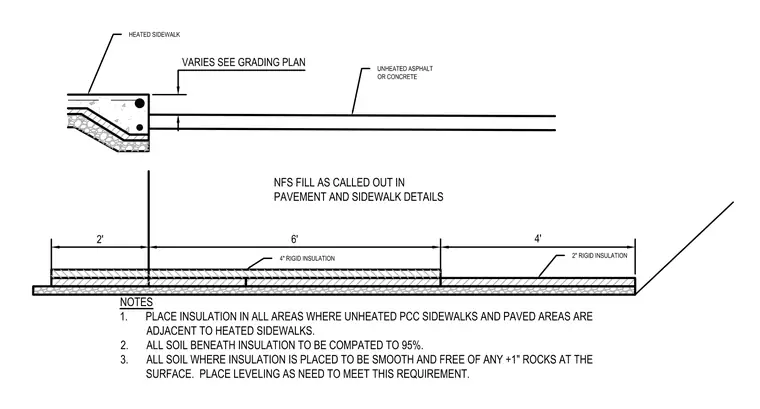

A four-foot width of four-inch rigid insulation extends outward from the heated slab, transitioning to a two-foot width of two-inch rigid insulation beneath the unheated paving at the thermal break transition between a heated concrete sidewalk and unheated asphalt or Portland cement concrete pavement. The subgrade beneath the insulation requires compaction to ninety-five percent density and must remain smooth and free of rocks larger than one inch, utilizing leveling fill as necessary. Non-frost-susceptible fill is placed as specified in standard pavement and sidewalk details.
NFS FILL AS CALLED OUT IN PAVEMENT AND SIDEWALK DETAILS NOTES 1. PLACE INSULATION IN ALL AREAS WHERE UNHEATED PCC SIDEWALKS AND PAVED AREAS ARE ADJACENT TO HEATED SIDEWALKS. 2. ALL SOIL BENEATH INSULATION TO BE COMPATED TO 95%. 3. ALL SOIL WHERE INSULATION IS PLACED TO BE SMOOTH AND FREE OF ANY +1" ROCKS AT THE SURFACE. PLACE LEVELING AS NEED TO MEET THIS REQUIREMENT. 4' 4" RIGID INSULATION 2" RIGID INSULATION VARIES SEE GRADING PLAN UNHEATED ASPHALT OR CONCRETE HEATED SIDEWALK 6' 2'
