Civil · C-TTND3

Airfield Concrete Pavement Section

Materials

Elements

Floors / Slabs Foundations / Footings Reinforcing

About this detail

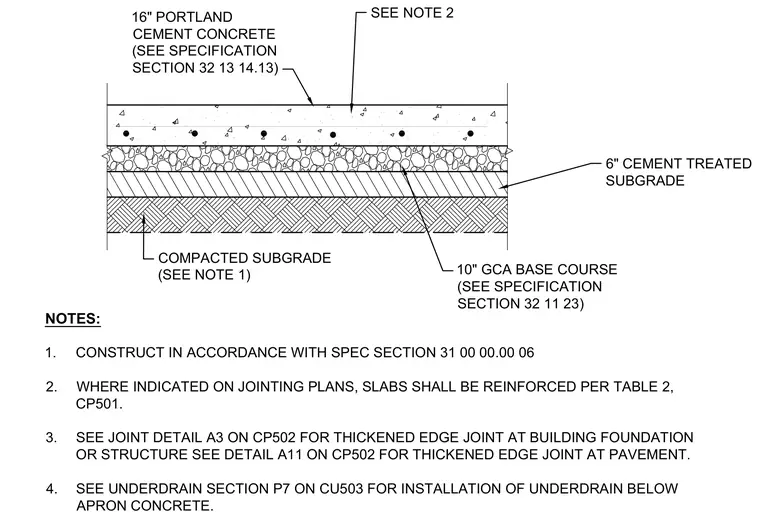

An airfield pavement assembly consists of a sixteen-inch Portland cement concrete wearing slab placed over a ten-inch GCA base course, a six-inch cement-treated subgrade, and a compacted subgrade layer. Slabs are reinforced as indicated on jointing plans per Table 2, CP501. Thickened edge joints at building foundations, structures, and pavements are coordinated per specific joint details. Underdrains are installed below apron concrete as detailed on the civil drawings.
