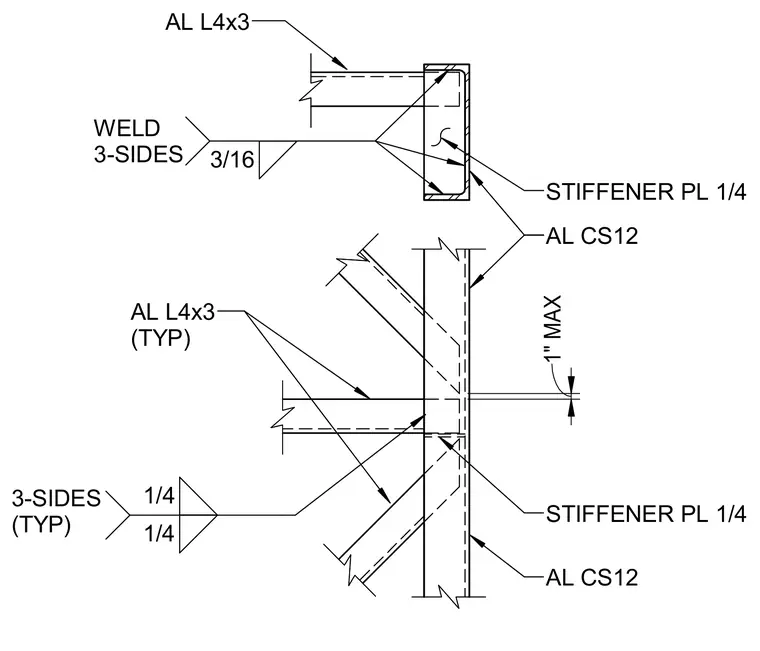

An aluminum angle member is connected to an aluminum channel section utilizing a quarter-inch stiffener plate. The connection is secured with three-sixteenths and quarter-inch fillet welds applied on three sides typically. A maximum one-inch dimension separates intersecting elements. Stiffener plates are welded internally to reinforce the joint assembly.
1/4 1/4 AL L4x3 (TYP) 3-SIDES (TYP) 1" MAX STIFFENER PL 1/4 AL L4x3 AL CS12 AL CS12 3/16 WELD 3-SIDES STIFFENER PL 1/4
