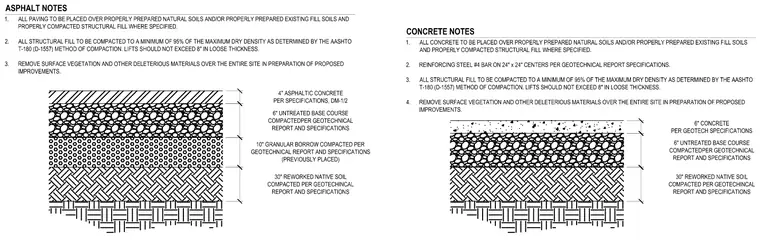

The asphalt paving section consists of four inches of asphaltic concrete over six inches of untreated base course, ten inches of previously placed granular borrow, and thirty inches of reworked native soil compacted per geotechnical specifications. The concrete paving section consists of six inches of concrete reinforced with number four bars on twenty-four-inch centers, placed over six inches of untreated base course and thirty inches of reworked native soil. All subgrade and structural fill layers require compaction to a minimum of ninety-five percent of maximum dry density determined by AASHTO T-180 methods in maximum eight-inch loose lifts after removal of surface vegetation and deleterious materials.
1. ALL PAVING TO BE PLACED OVER PROPERLY PREPARED NATURAL SOILS AND/OR PROPERLY PREPARED EXISTING FILL SOILS AND PROPERLY COMPACTED STRUCTURAL FILL WHERE SPECIFIED. 2. ALL STRUCTURAL FILL TO BE COMPACTED TO A MINIMUM OF 95% OF THE MAXIMUM DRY DENSITY AS DETERMINED BY THE AASHTO T-180 (D-1557) METHOD OF COMPACTION. LIFTS SHOULD NOT EXCEED 8" IN LOOSE THICKNESS. 3. REMOVE SURFACE VEGETATION AND OTHER DELETERIOUS MATERIALS OVER THE ENTIRE SITE IN PREPARATION OF PROPOSED IMPROVEMENTS. ASPHALT NOTES 4" ASPHALTIC CONCRETE PER SPECIFICATIONS, DM-1/2 6" UNTREATED BASE COURSE COMPACTEDPER GEOTECHNICAL REPORT AND SPECIFICATIONS 10" GRANULAR BORROW COMPACTED PER GEOTECHNICAL REPORT AND SPECIFICATIONS (PREVIOUSLY PLACED) 30" REWORKED NATIVE SOIL COMPACTED PER GEOTECHINCAL REPORT AND SPECIFICATIONS 1. ALL CONCRETE TO BE PLACED OVER PROPERLY PREPARED NATURAL SOILS AND/OR PROPERLY PREPARED EXISTING FILL SOILS AND PROPERLY COMPACTED STRUCTURAL FILL WHERE SPECIFIED. 2. REINFORCING STEEL #4 BAR ON 24" x 24" CENTERS PER GEOTECHNICAL REPORT SPECIFICATIONS. 3. ALL STRUCTURAL FILL TO BE COMPACTED TO A MINIMUM OF 95% OF THE MAXIMUM DRY DENSITY AS DETERMINED BY THE AASHTO T-180 (D-1557) METHOD OF COMPACTION. LIFTS SHOULD NOT EXCEED 8" IN LOOSE THICKNESS. 4. REMOVE SURFACE VEGETATION AND OTHER DELETERIOUS MATERIALS OVER THE ENTIRE SITE IN PREPARATION OF PROPOSED IMPROVEMENTS. CONCRETE NOTES 6" CONCRETE PER GEOTECH SPECIFICATIONS 6" UNTREATED BASE COURSE COMPACTEDPER GEOTECHNICAL REPORT AND SPECIFICATIONS 30" REWORKED NATIVE SOIL COMPACTED PER GEOTECHINCAL REPORT AND SPECIFICATIONS
