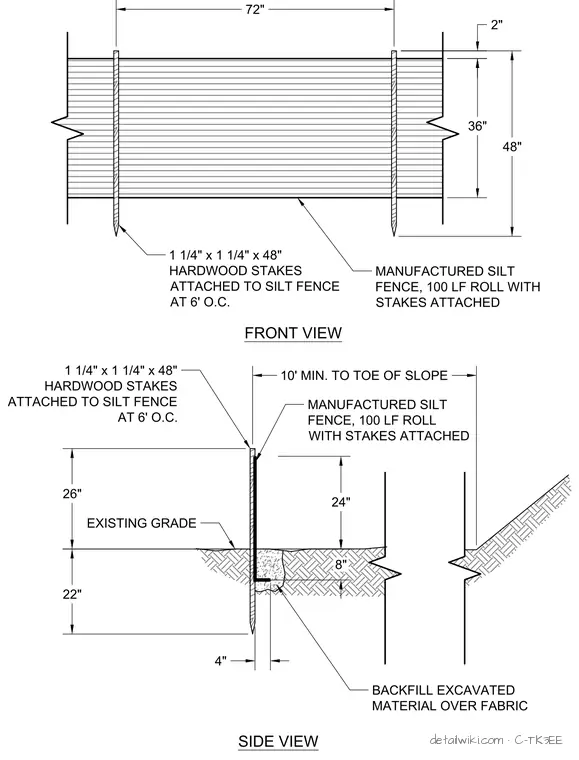

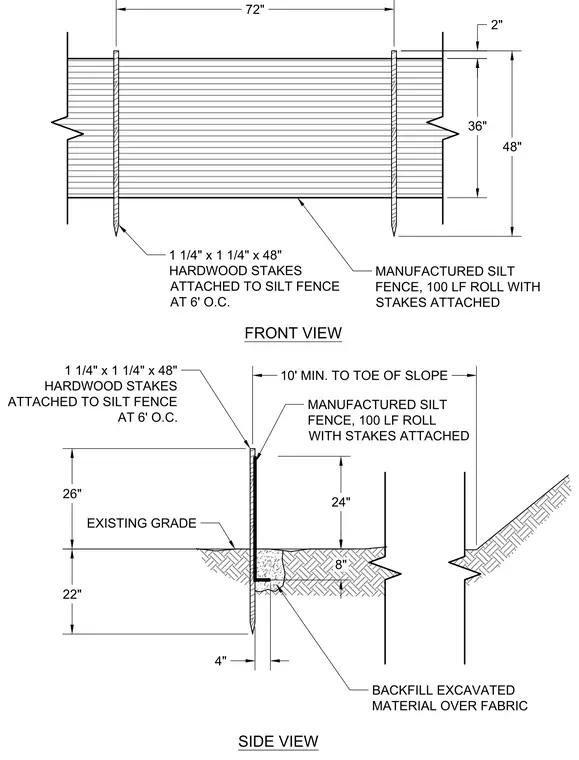

Manufactured silt fence fabric attaches to one and one-quarter inch by one and one-quarter inch by forty-eight inch hardwood stakes spaced at six feet on center. The fabric extends twenty-six inches above the existing grade and buries twenty-two inches deep into the ground. Excavated material backfills over the buried portion of the fabric to secure it in place. The fence sits a minimum of ten feet from the toe of the slope.
Text on the drawing
NOT TO SCALE MANUFACTURED SILT FENCE DETAIL 36" 48" 72" FRONT VIEW 1 1/4" x 1 1/4" x 48" HARDWOOD STAKES ATTACHED TO SILT FENCE AT 6' O.C. MANUFACTURED SILT FENCE, 100 LF ROLL WITH STAKES ATTACHED 2" 10' MIN. TO TOE OF SLOPE 26" 22" 4" EXISTING GRADE 1 1/4" x 1 1/4" x 48" HARDWOOD STAKES ATTACHED TO SILT FENCE AT 6' O.C. MANUFACTURED SILT FENCE, 100 LF ROLL WITH STAKES ATTACHED 24" 8" BACKFILL EXCAVATED MATERIAL OVER FABRIC SIDE VIEW C401 4
