An eight-inch storm pipe penetrates a core-drilled ten-inch diameter hole in the concrete wall of an area inlet. A flexible watertight manhole connector seals the pipe penetration within the wall assembly. The pipe is installed in place with a waterproof gasket and finished with grout as needed, then trimmed flush with the interior face of the manhole walls.

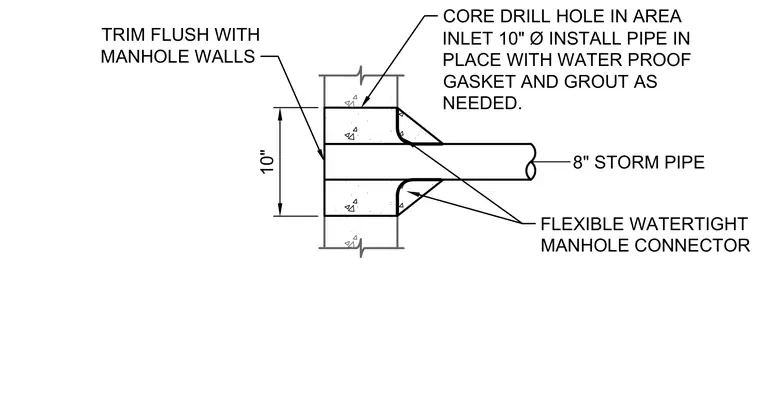

CORE DRILL HOLE IN AREA INLET 10" Ø INSTALL PIPE IN PLACE WITH WATER PROOF GASKET AND GROUT AS NEEDED. TRIM FLUSH WITH MANHOLE WALLS 10" FLEXIBLE WATERTIGHT MANHOLE CONNECTOR 8" STORM PIPE
