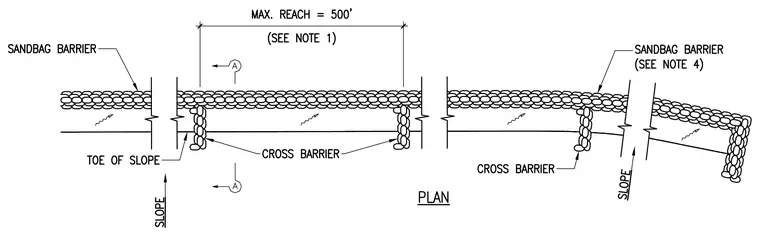

A sandbag barrier layout features a maximum reach of five hundred feet per note one. Cross barriers intersect the main sandbag barrier along the toe of the slope. Slope direction arrows indicate surface drainage patterns relative to the barrier placement.
