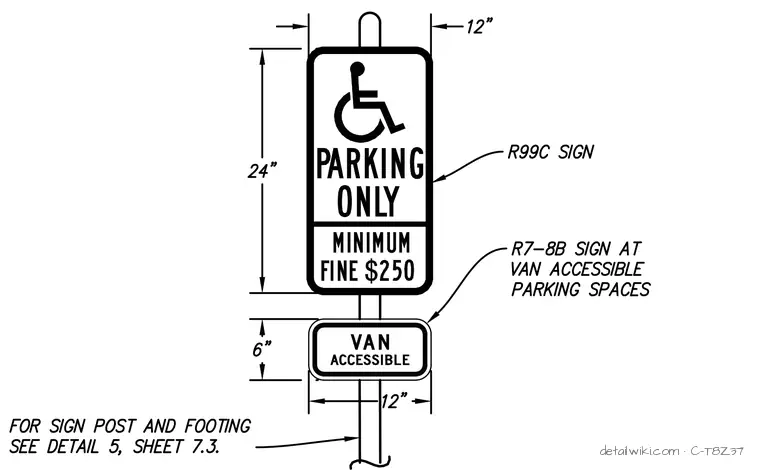

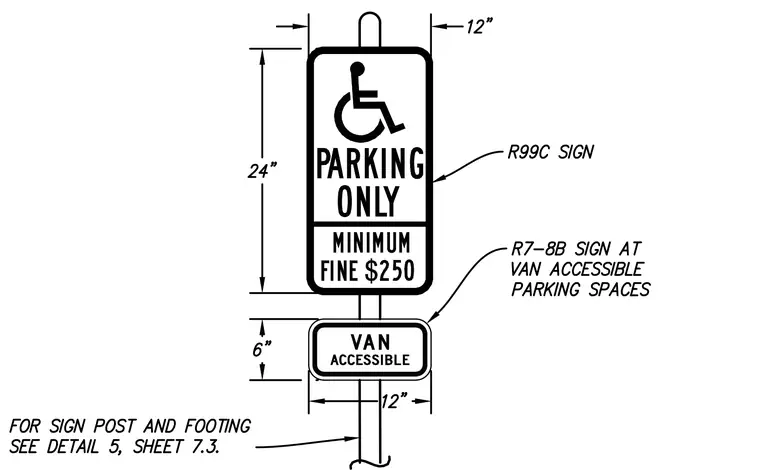

This assembly features a 12-inch by 24-inch R99C parking sign mounted above a 12-inch by 6-inch R7-8B van accessible plaque. The signs are secured to a vertical post, with the post and footing details referenced to a separate drawing. The R7-8B plaque is specifically required for van accessible parking spaces.
