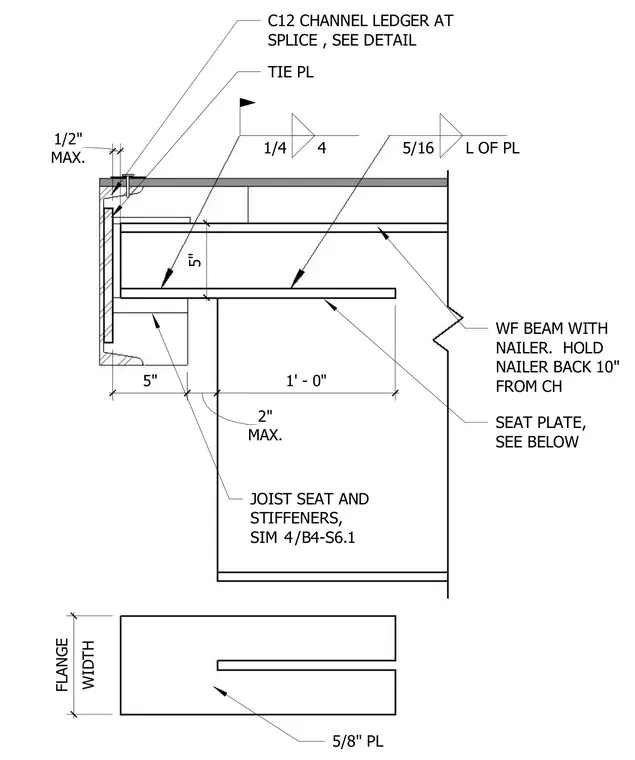

A wide flange beam with a wood nailer connects to a C12 channel ledger with a tie plate and a 5/8-inch seat plate. The nailer is held back 10 inches from the channel. Joist seats and stiffeners are welded with a five-sixteenths-inch fillet weld, and the connection includes a quarter-inch weld with a length of 4 inches. Clearances include a half-inch maximum and a 2-inch maximum spacing.
5/16 L OF PL JOIST SEAT AND STIFFENERS, SIM C12 CHANNEL LEDGER AT SPLICE , SEE DETAIL 5" MAX. 1/2" MAX. 2" 1' - 0" 5" TIE PL WF BEAM WITH NAILER. HOLD NAILER BACK 10" FROM CH 1/4 4 WIDTH FLANGE 5/8" PL SEAT PLATE, SEE BELOW / 4 B4-S6.1
