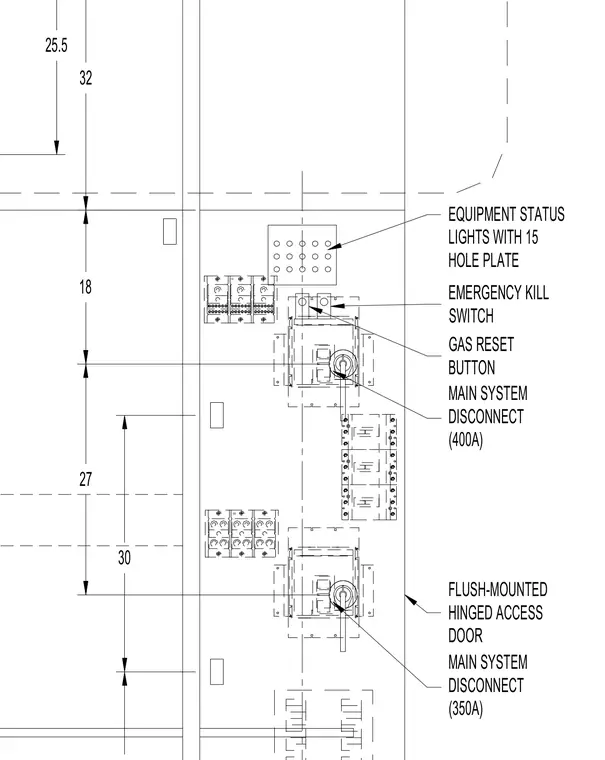

This elevation shows the layout of primary riser electrical equipment mounted within an enclosure. The assembly includes a main system disconnect rated at 400A and another rated at 350A, an emergency kill switch, a gas reset button, and equipment status lights with a 15-hole plate. Access is provided via a flush-mounted hinged access door.
18 32 27 30 25.5 202 112 EQUIPMENT STATUS LIGHTS WITH 15 HOLE PLATE FLUSH-MOUNTED HINGED ACCESS DOOR GAS RESET BUTTON EMERGENCY KILL SWITCH MAIN SYSTEM DISCONNECT (350A) MAIN SYSTEM DISCONNECT (400A)
